Description

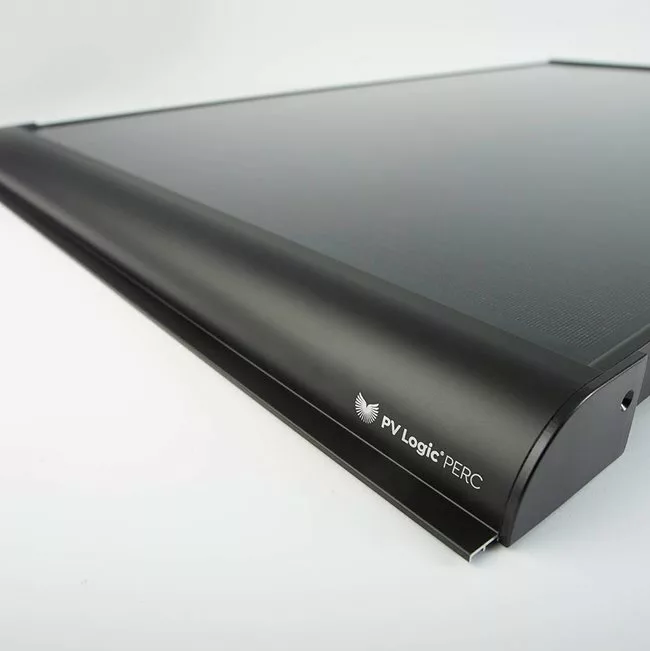

Build your perfect roof and deck top kit starting with a premium solar panel
With power ratings up to 200w, Solar Technology’s rigid MHD solar panels fulfil a variety of energy needs ranging from a continuous trickle feed of power to prevent battery drain in caravans, motorhomes and boats to creating energy self-sufficiency for off-grid travel.
A charge controller should be used with MHD solar panels to protect the battery from being overcharged and to prevent reverse current drain.
Put yourself in control
The 10Ah and 20Ah PWM charge controllers are capable of charging 12V and 24V single or dual batteries.
The MPPT charge controllers increase solar yield by up to 20% over a standard charge controller by artificially modifying the voltage from a solar panel system to actively match any battery’s requirements. This means that whatever the weather conditions your panels will deliver maximum power with minimum electrical loss.
The 15Ah MPPT Pro can charge dual batteries, the 20Ah and 30Ah Pro Plus models charge a single battery.
All PV Logic MPPT charge controllers come with free-to-download Bluetooth app (Apple and Android) to display how the solar system is performing. The app software links your smartphone to the charge controller and shows performance figures for the leisure battery.
Opt for the brackets of your choice
The premium aero brackets are the most popular option to install MHD Rigid panels. There is also the option of fitting the panel with ABS corner brackets. The roof and deck top kit comes with a 10Ah PWM charge controller plus the opportunity to upgrade the to a model in the MPPT Pro range.
- High efficiency crystalline cell for “all weather” charging
-
Water resistant, robust construction for outdoor use.
-
In built diode protects against battery discharge
-
Tough and robust
-
10 year module warranty

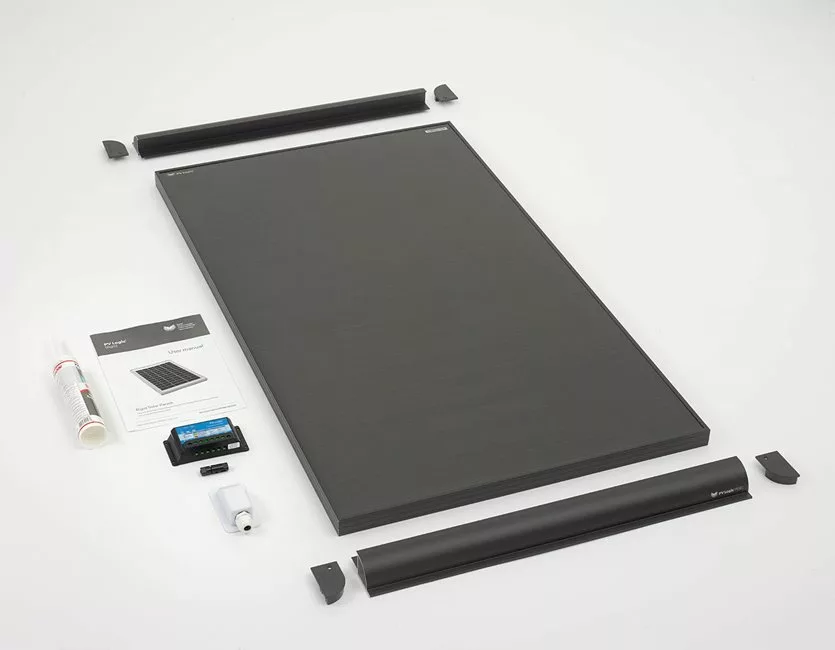

Roof and Deck Top Contents
1 x 100w/125w/150w/200w MHD solar panel with cable/s
1 x 10Ah/20Ah charge controller (or upgrade to 15Ah, 20Ah or 30Ah MPPT charge controller)
1 x premium aero bracket fitting kit (or opt for ABS corner brackets)
1 x cable feed gland
1 x tube bonding agent
1 x fitting instructions
Power | Size | Weight | Watts per day | AMP hours per day | VMP (VDC) | IMP (A) | VOC (V) | ISC (A) |
100w | 1150 x 460 x 35mm | 6.9kg | 600 | 31.92 | 10Ah | 18.8 | 5.32 | 5.64 |
125w | 988 x 670 x 35mm | 7.5kg | 750 | 23.52 | 10Ah | 31.9 | 3.92 | 4.15 |
150w | 1150 x 670 x 35mm | 8.5kg | 900 | 47.88 | 10Ah | 18.8 | 7.98 | 8.46 |
200w | 1520 x 670 x 35mm | 11.8kg | 1200 | 48 | 20Ah | 25 | 8 | 8.48 |
