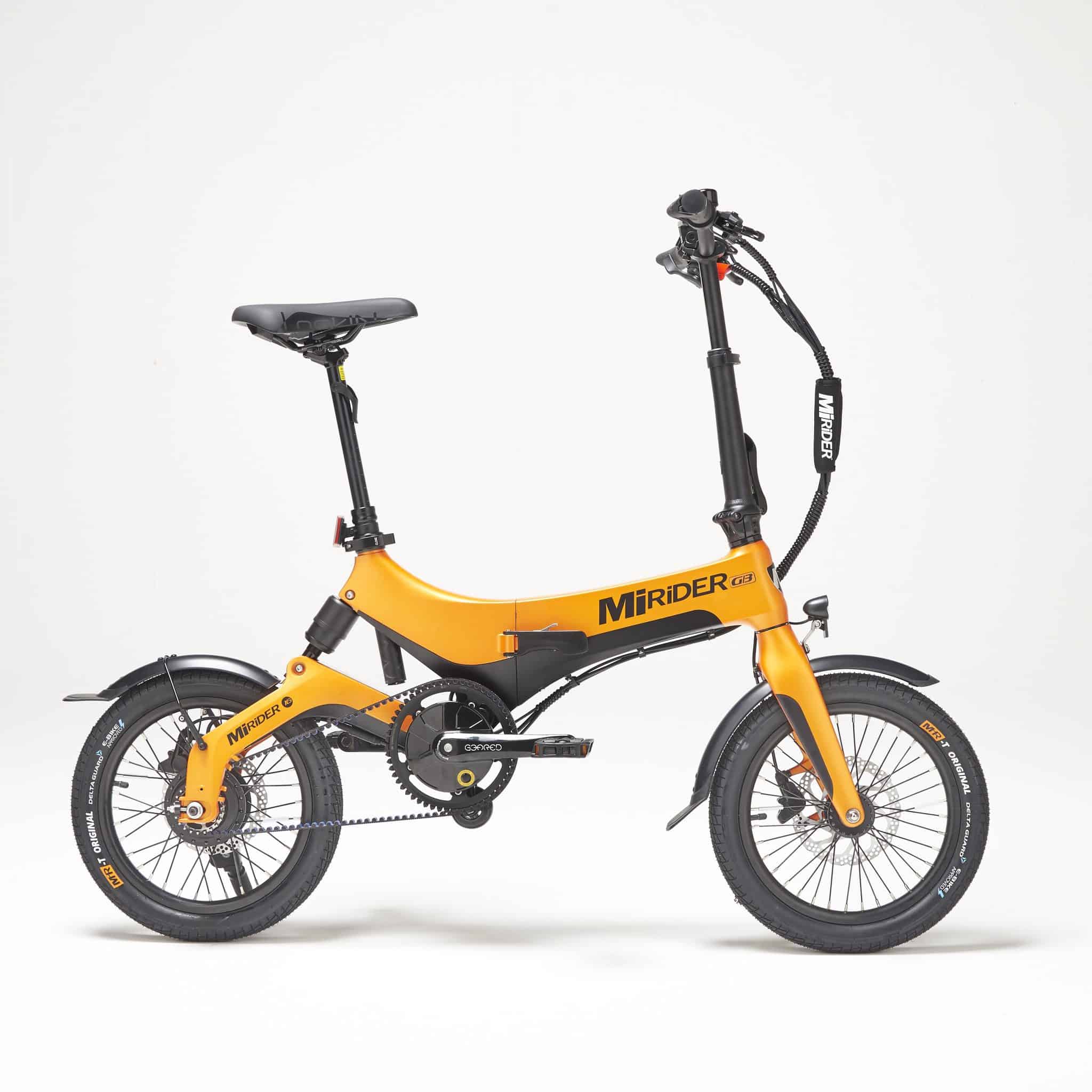

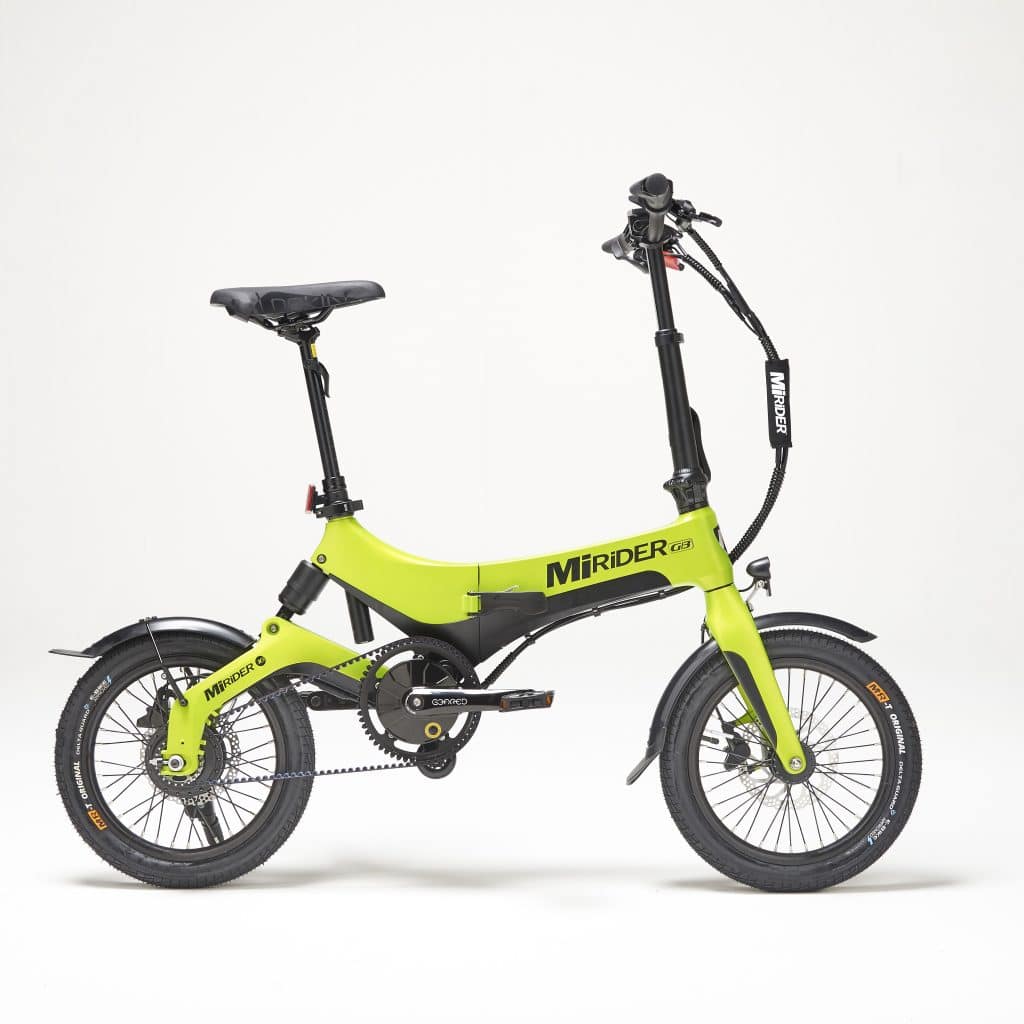

MIRIDER – ONE GB3 FOLDING EBIKE

Description

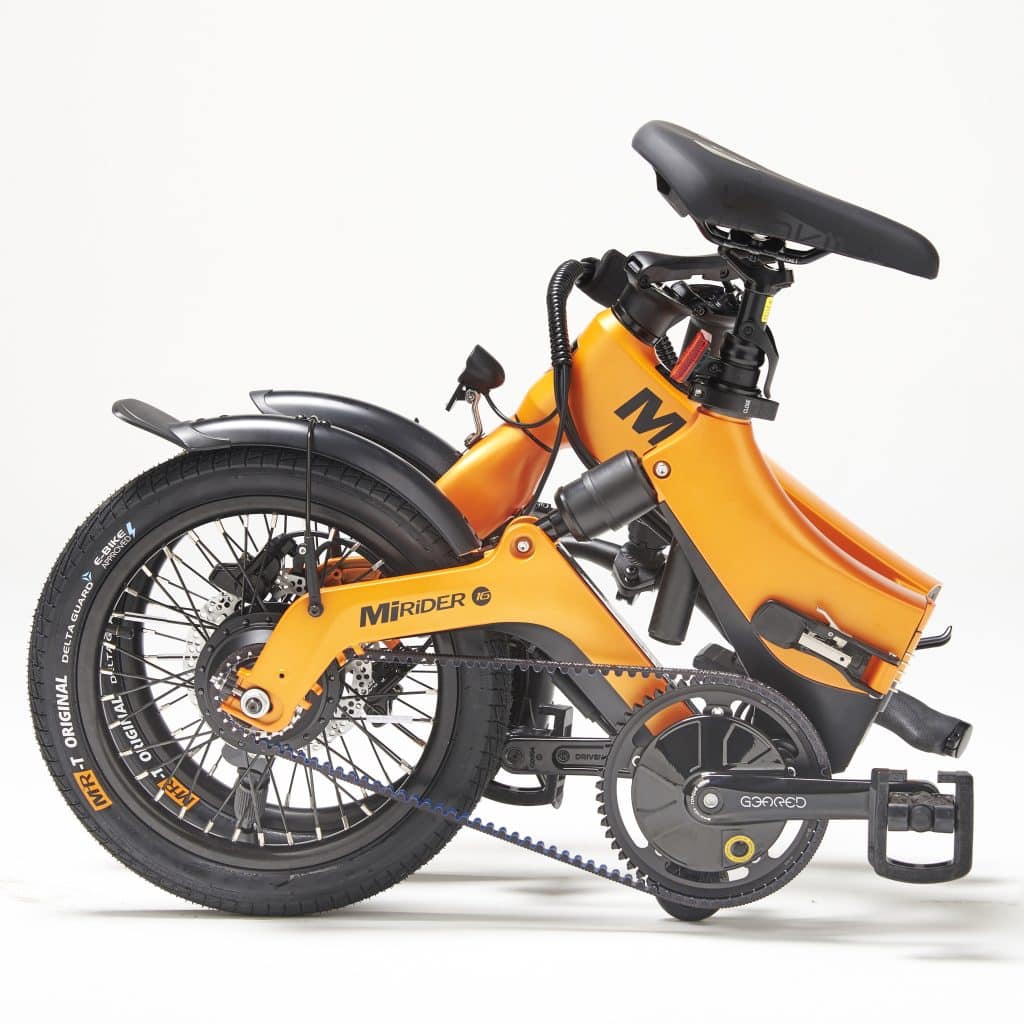

The perfect companion for those seeking a versatile and agile e-bike. It benefits from a surprisingly compact fold for when storage and transport spaces are at a premium at home, work or on the move. Renowned for it’s ability to fit “two in a boot”, placing under a desk, or in a train luggage hold are considered a breeze also. Whether you’re exploring new cities or enjoying leisurely rides with your motorhome or caravan, the MiRiDER 16 is an easy way to get around in effortless style.

MiRiders very own take on a geared bike and an industry first for folding eBikes. Rather than take the easy, traditional option of moving the hub motor to the front and hanging a derailleur off the back, they wanted to be smarter than that. They wanted to retain the balance, weight distribution and traction a rear wheel hub offers whilst avoiding a bulky and dirty gear set.

To enhance the unique gear system, they’ve added a custom belt drive system, which provides a quiet and smooth ride without the oil!

Adding to the appeal, they have loaded the bike with a selection of extra upgrades which can be seen below

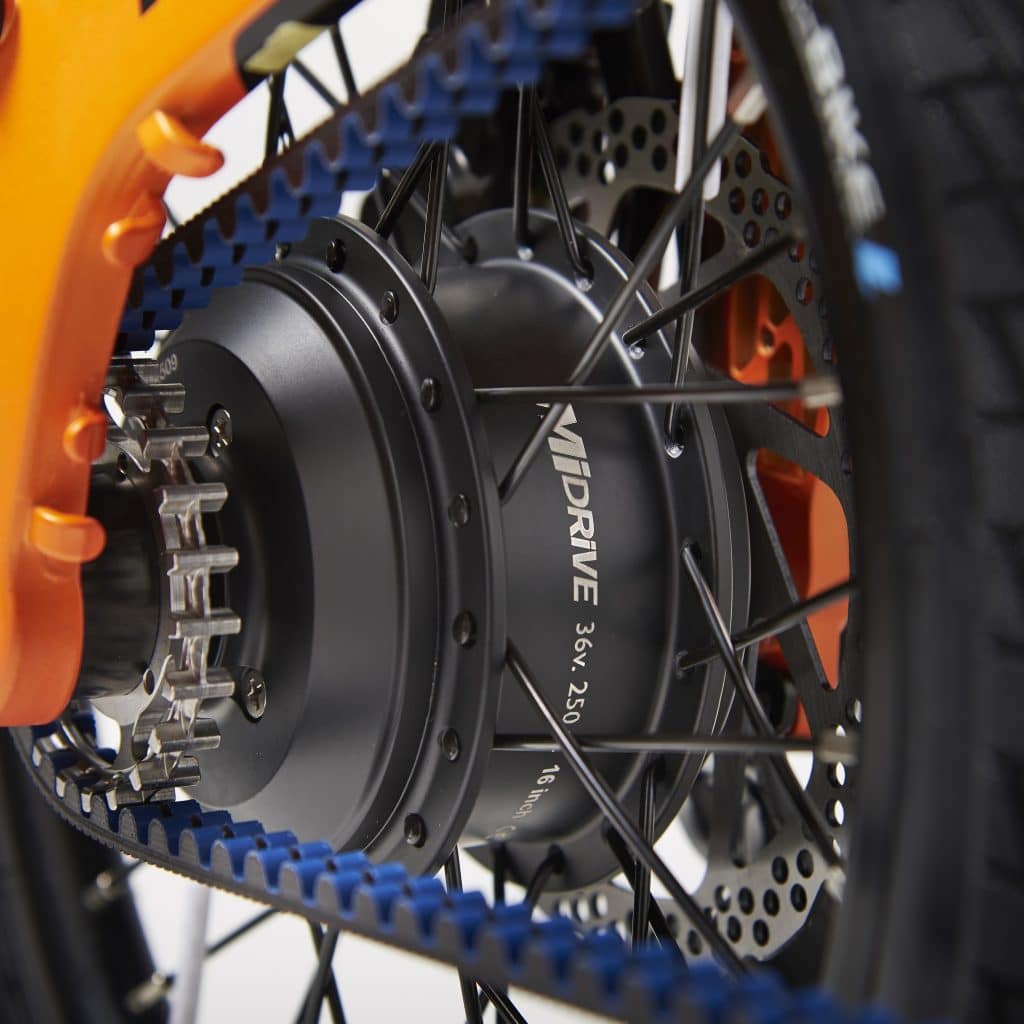

Motor – Geared brushless rear hub motor

Nominal Power – 250 W (UK legal limit) with 40 nm of torque

Pedal Assist Top Speed – 25 km/h or 15.5 mph (UK legal limit)

Battery Type – Samsung 18650 Lithium-Ion Cells

Battery Specs – 36 v 7 Ah / 252 Wh

Battery Features – Removable and lockable (chargeable inside or off the bike)

MAX Range – up to 72 km or 45 miles (based on power level 1, average pace, rider weight and even terrain)

Climbing Angle – 25 degrees maximum (based on average rider weight)

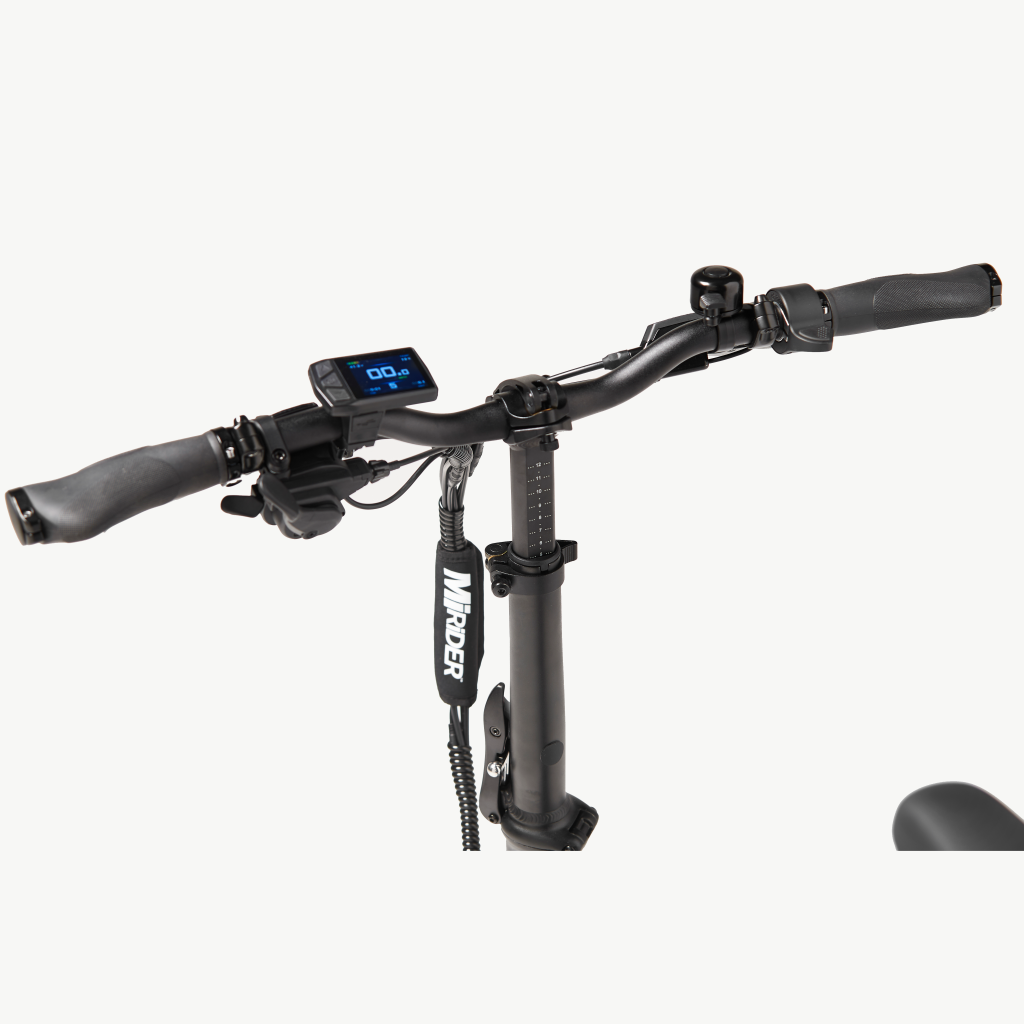

Handle Bars – High rise 60cm handlebars

Charge Time  – 2-3 hours (using 42 v, 2.0 A UK charger supplied)

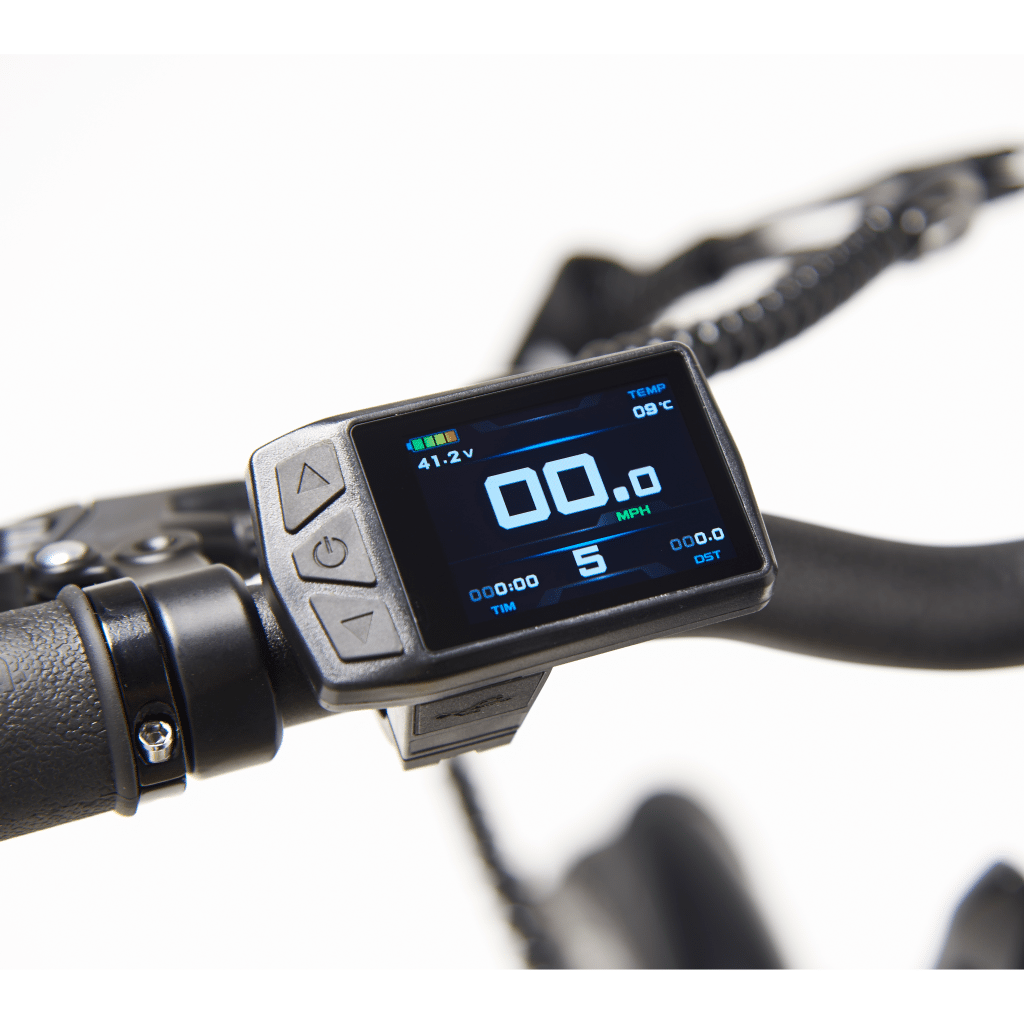

Display – Multi-function LCD coloured display

Controller – Sine-wave Torque Simulation KT Controller compliant with all UK legal parameters.

Dash board readouts – Speed (km/h or mph), distance travelled ODO/trip (miles/km), battery % level, pedal assistance level, Led headlight (on/off)

Pedal Assist – 5 levels

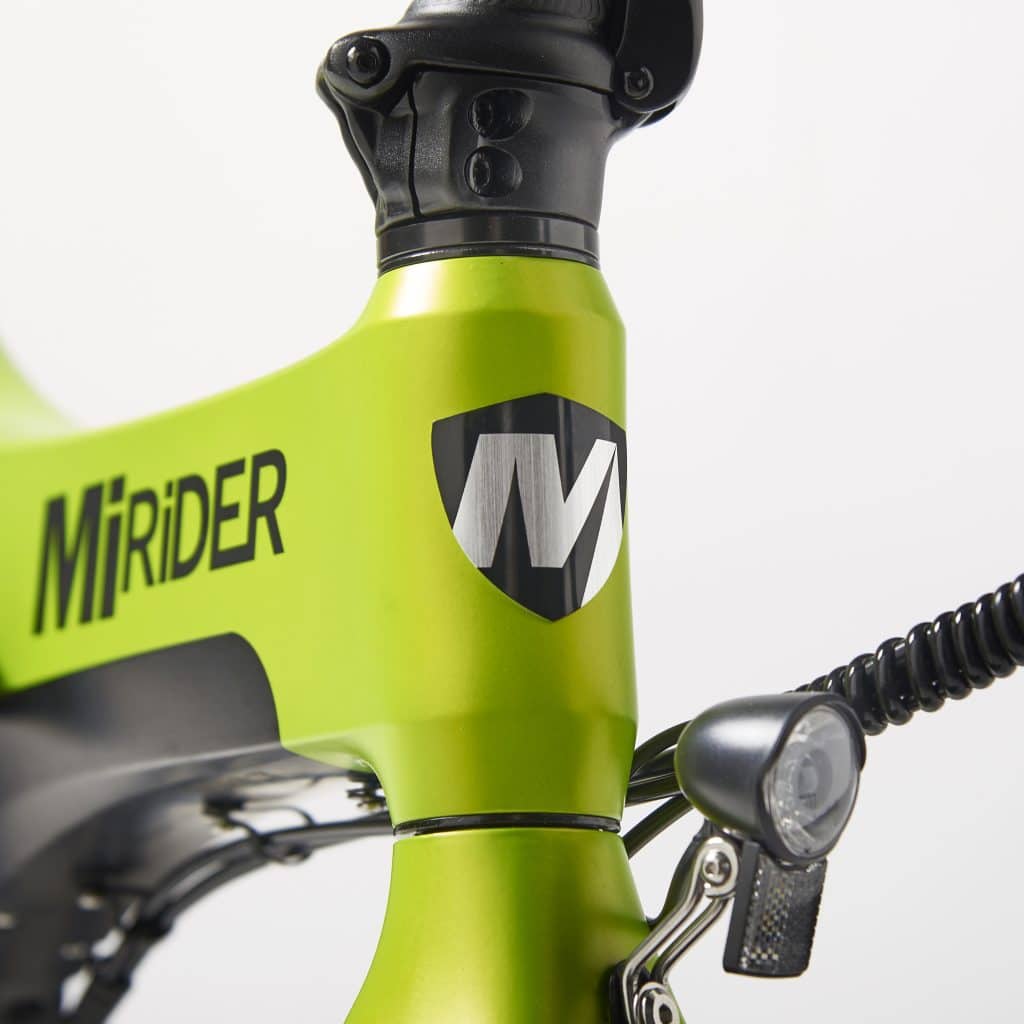

Frame/Fork – Full integrated magnesium alloy

Accessories Included – Front/rear mudguards, Front LED light, rear reflector, folding pedals, kickstand & stabiliser wheel, wheel magnets for secure folding, adjustable folding strap & battery charger.

Folded & Unfolded Dimensions – 770*430*680 mm / 1340*575*1100 mm

Brakes – Front and rear Clarks CMD-24 hydraulic disk brakes

Comfort – Rear spring damper

Tyres – Ralson road tyre with delta guard protection 16x 2.125

Wheels – 16” wheels with aero rims and a MiRiDER designed 1 piece front hub

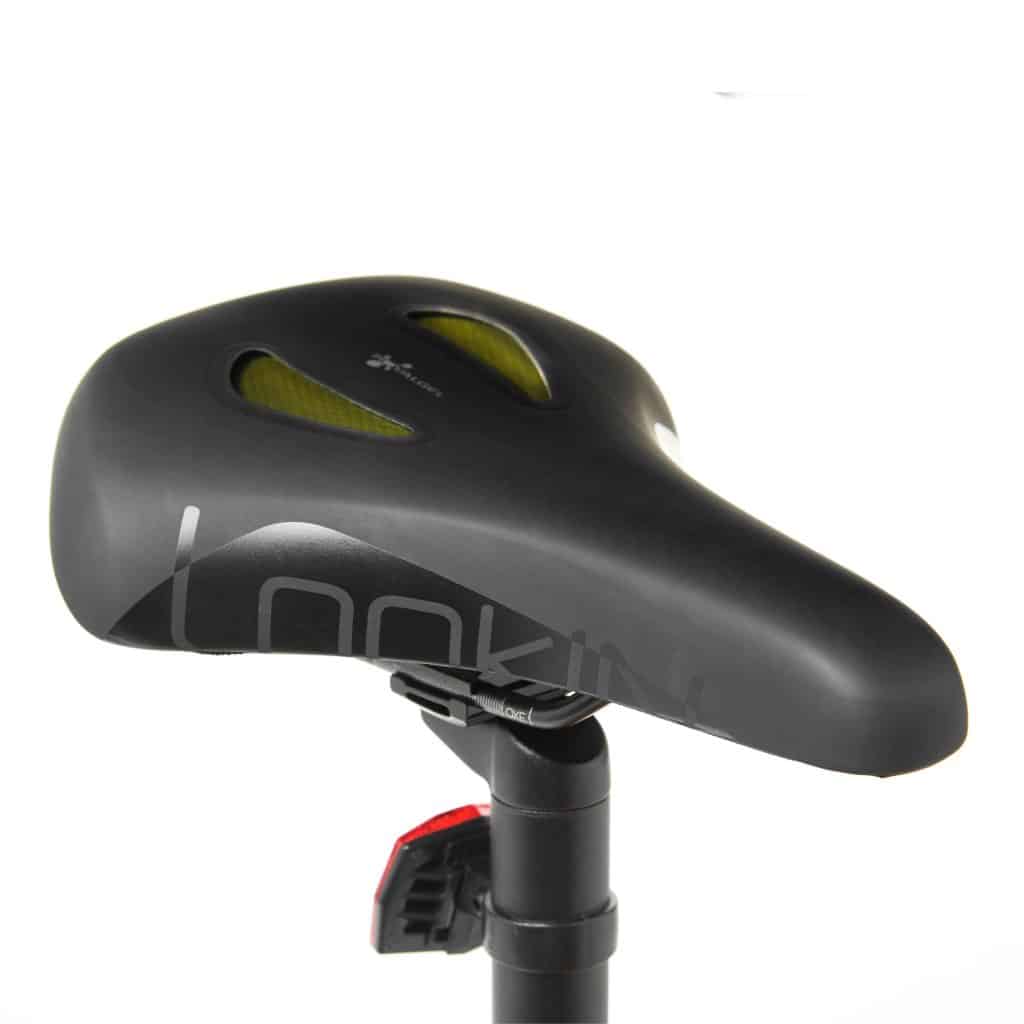

Saddle – Selle Royal Saddle

Chain – KMC e-bike specific

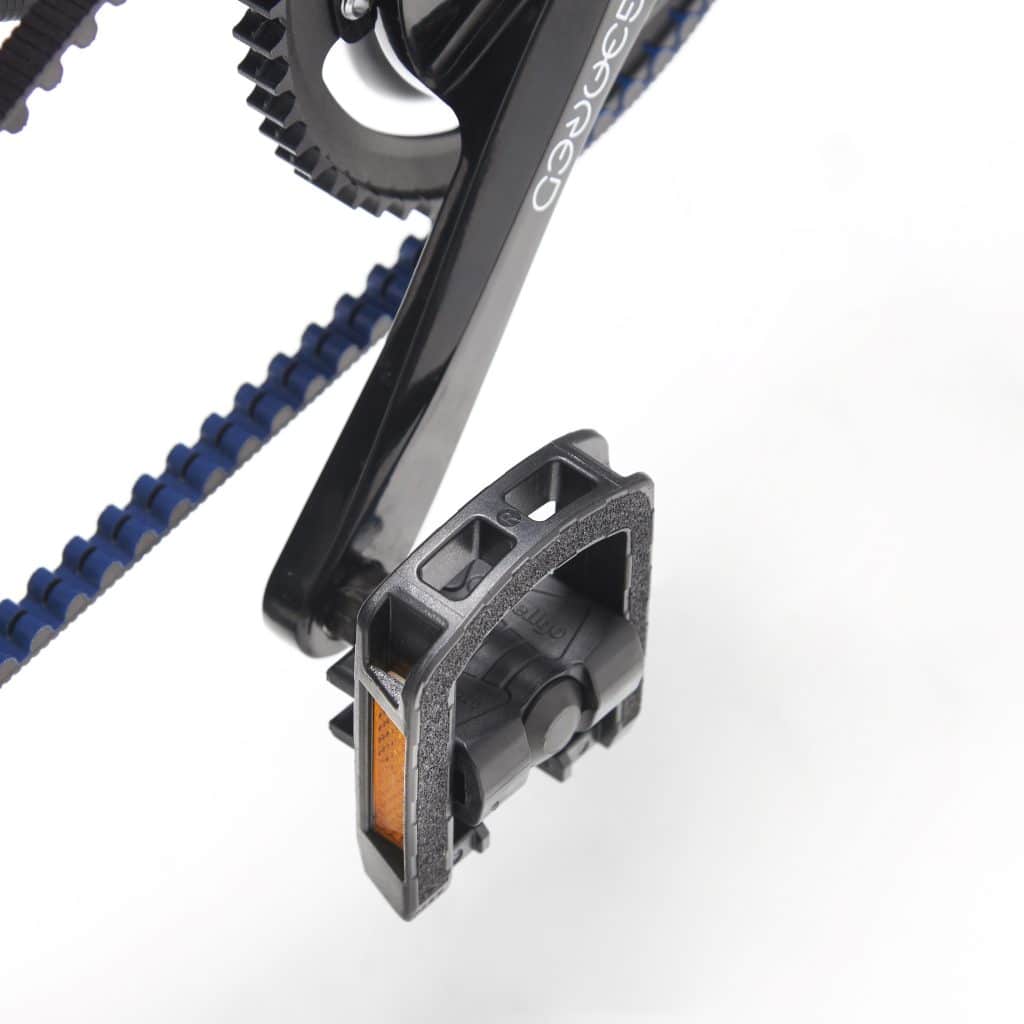

Pedals – Standard MiRiDER Pedals

Belt – C Drive Drive Belt 111 Tooth

Total Approximate Weight Fully Equipped – 19.4 kg

Maximum Recommended Rider Weight – 120 kg

Rider Height – 152 cm – 195 cm / 5’0 – 6’4

Road Legal – Worldwide

Optional Accessories – Additional battery, pannier rack, storage bag, pannier bag, phone holder and more
