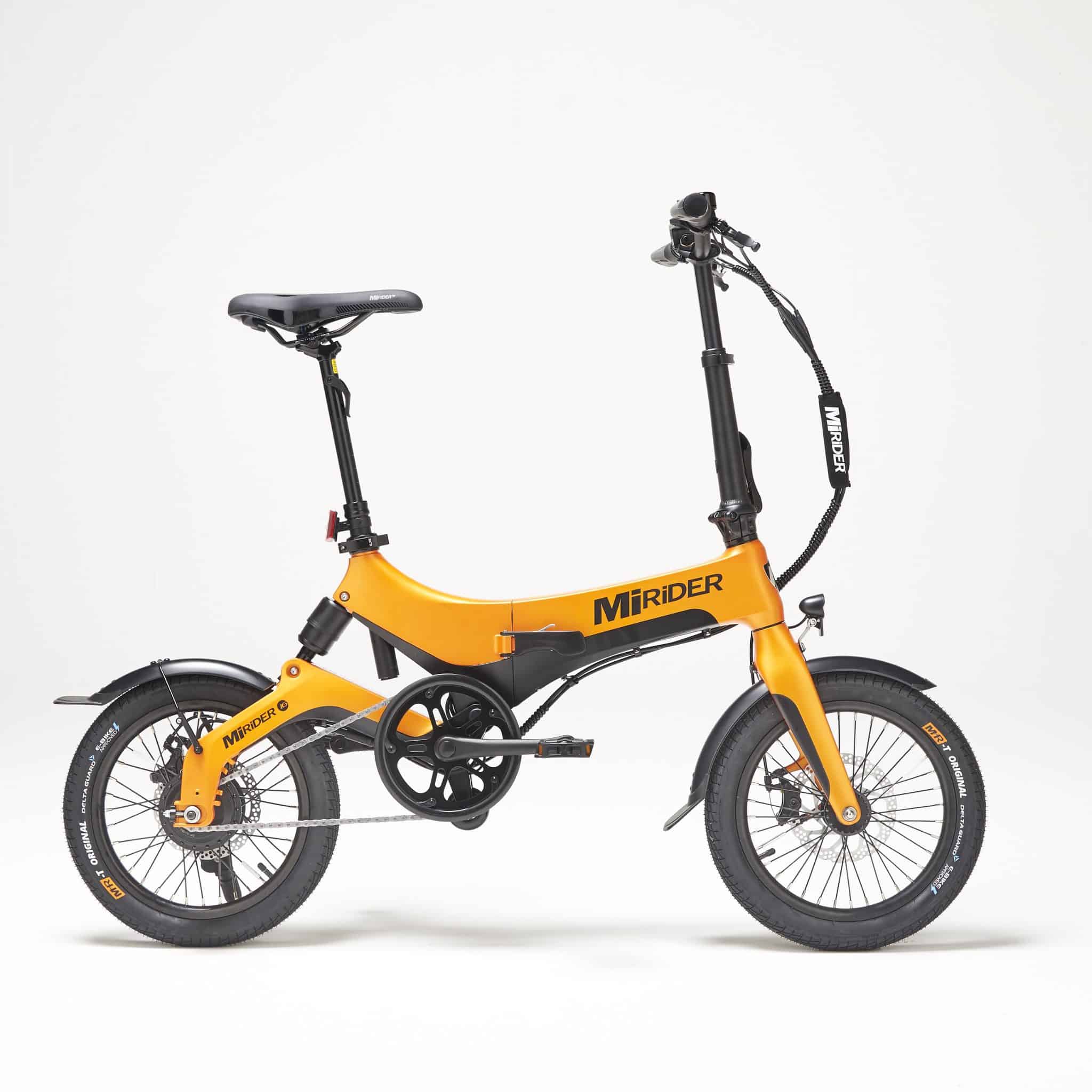

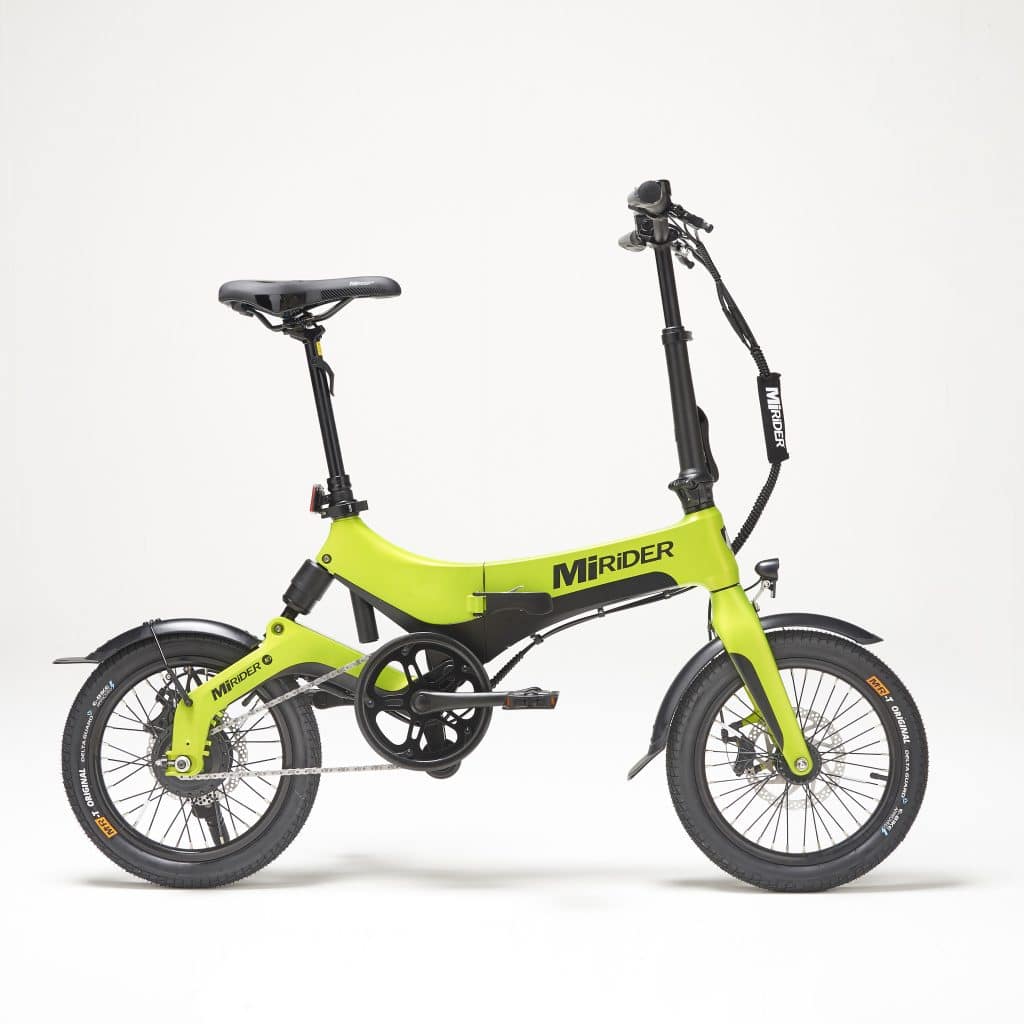

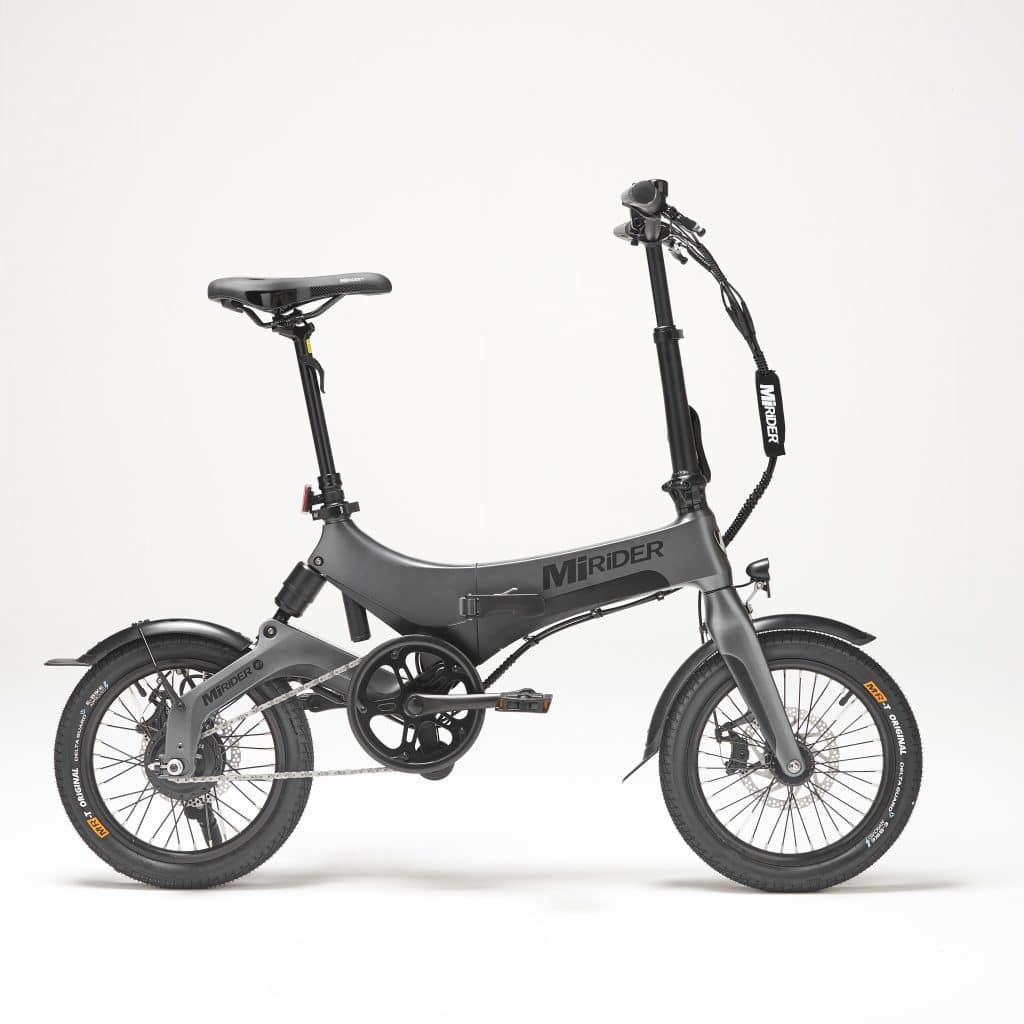

MiRider – One 16″ Folding E-bike

Description

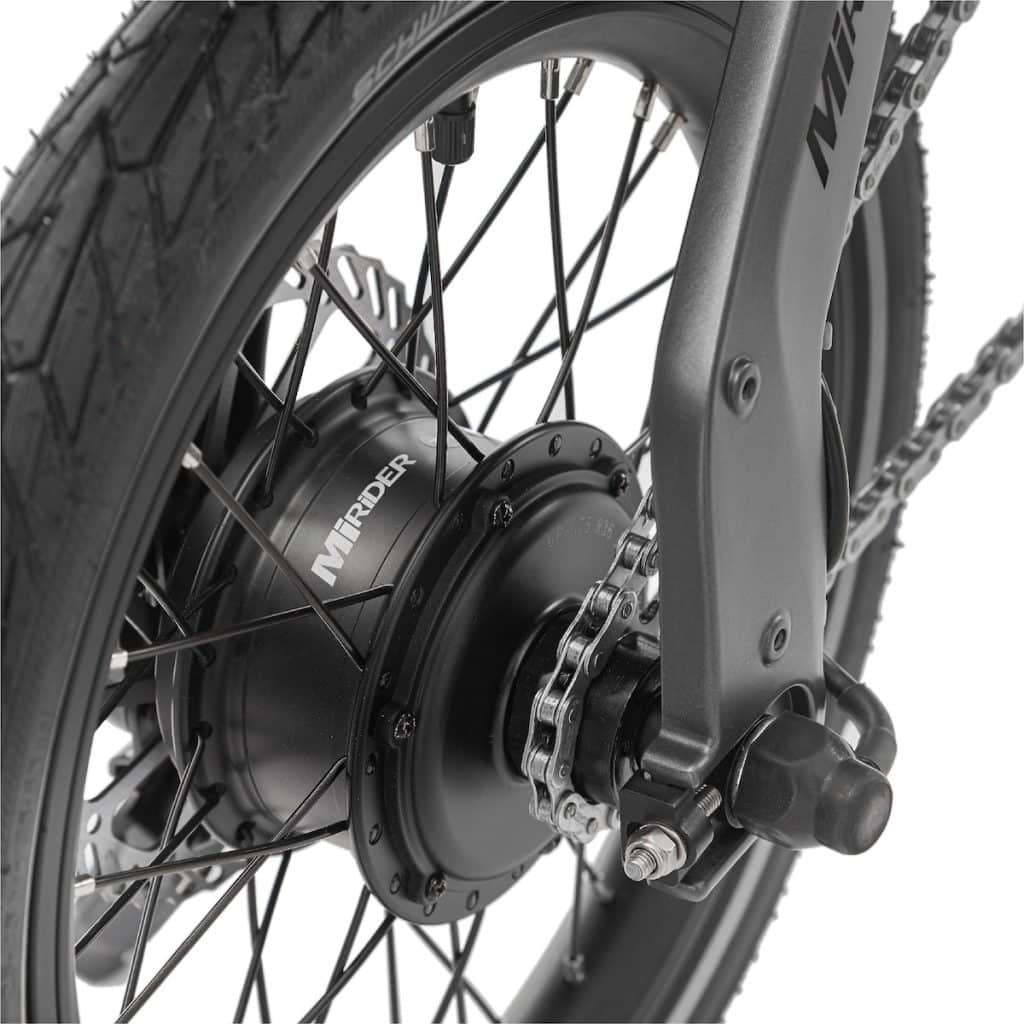

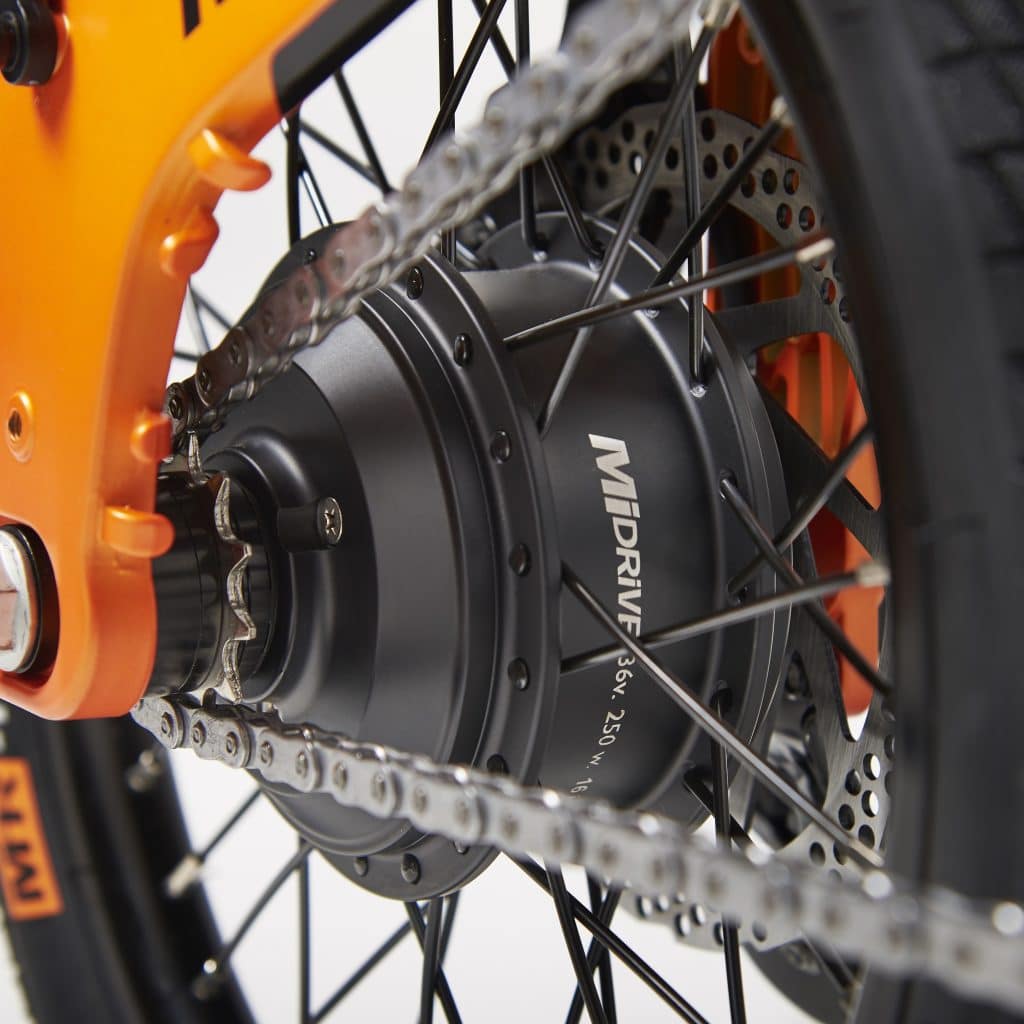

Motor – Geared brushless rear hub motor

Nominal Power – 250 W (UK legal limit) with 40 nm of torque

Pedal Assist Top Speed – 25 km/h or 15.5 mph (UK legal limit)

Battery Type – Samsung 18650 Lithium-Ion Cells

Battery Specs – 36 v 7 Ah / 252 Wh

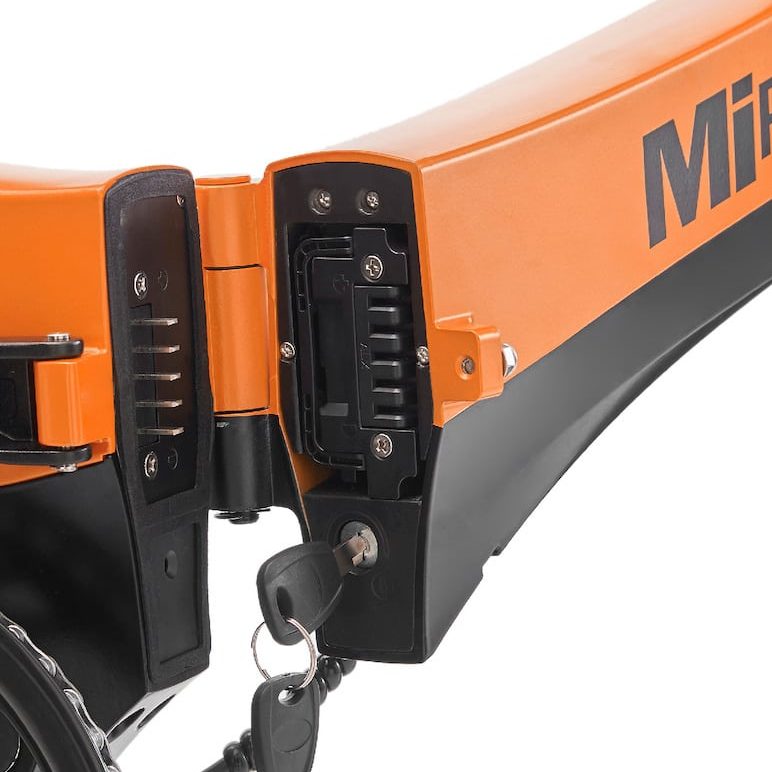

Battery Features – Removable and lockable (chargeable inside or off the bike)

MAX Range – up to 72 km or 45 miles (based on power level 1, average pace, rider weight and even terrain)

Climbing Angle – 25 degrees maximum (based on average rider weight)

Charge Time – 2-3 hours (using 42 v, 2.0 A UK charger supplied)

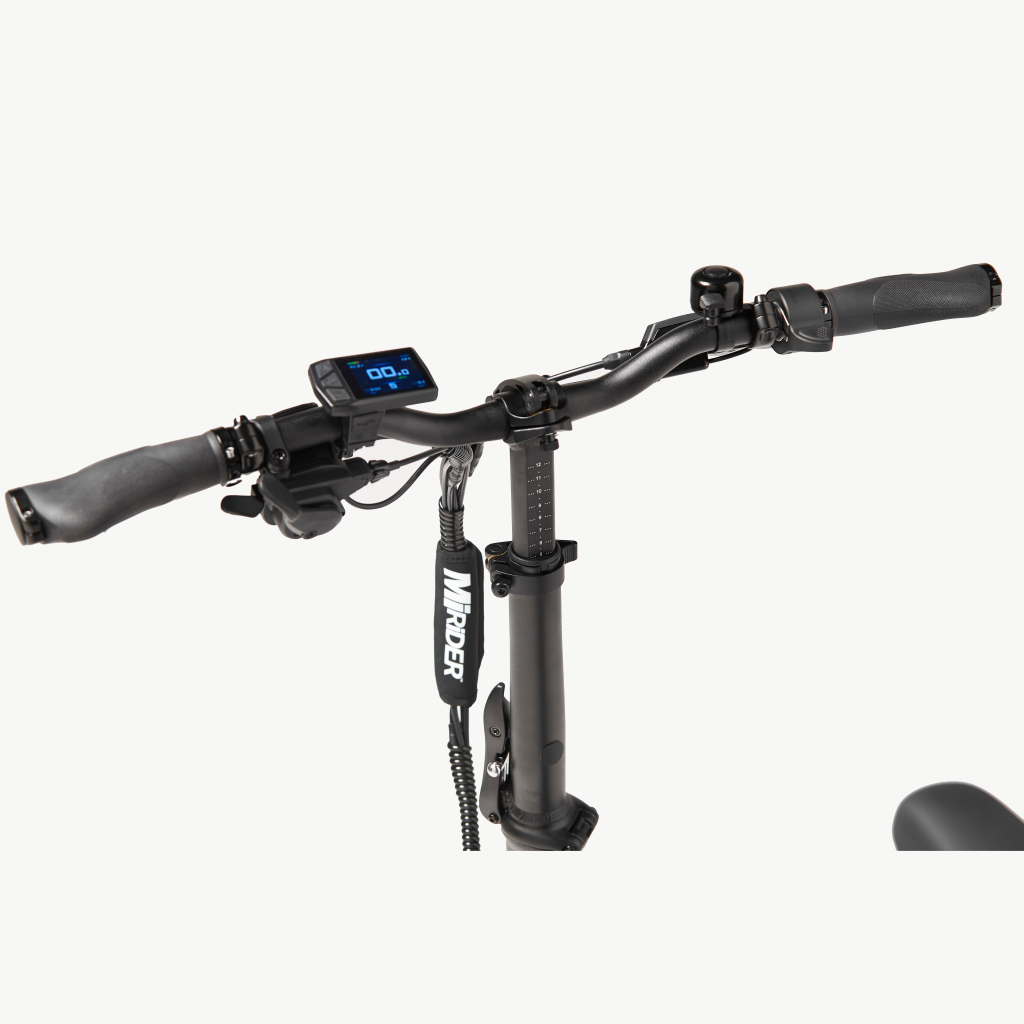

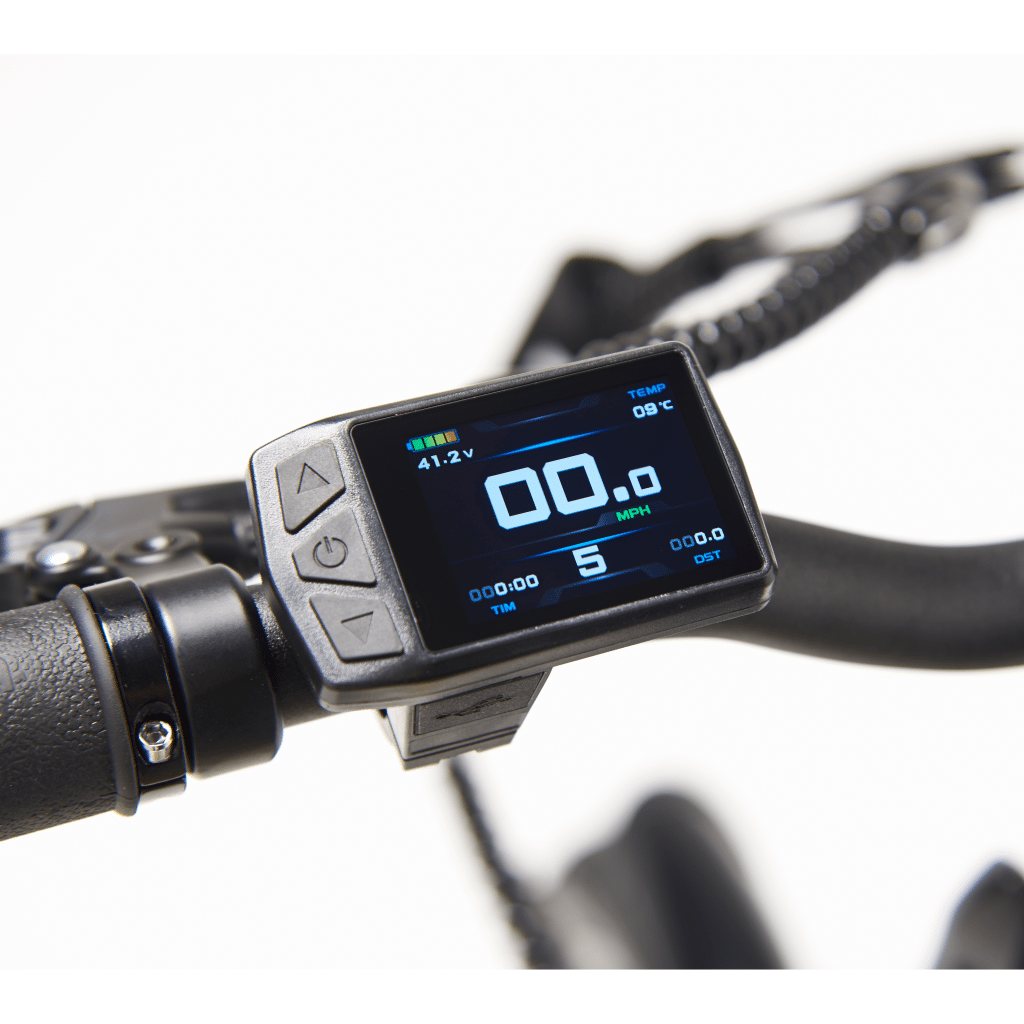

Display – Multi-function LCD back-lit

Controller – Sine-wave Torque Simulation KT Controller compliant with all UK legal parameters

Dash board readouts – Speed (km/h or mph), distance travelled ODO/trip (miles/km), battery % level, pedal assistance level, Led headlight (on/off)

Pedal Assist – 5 levels

Frame/Fork – Full integrated magnesium alloy

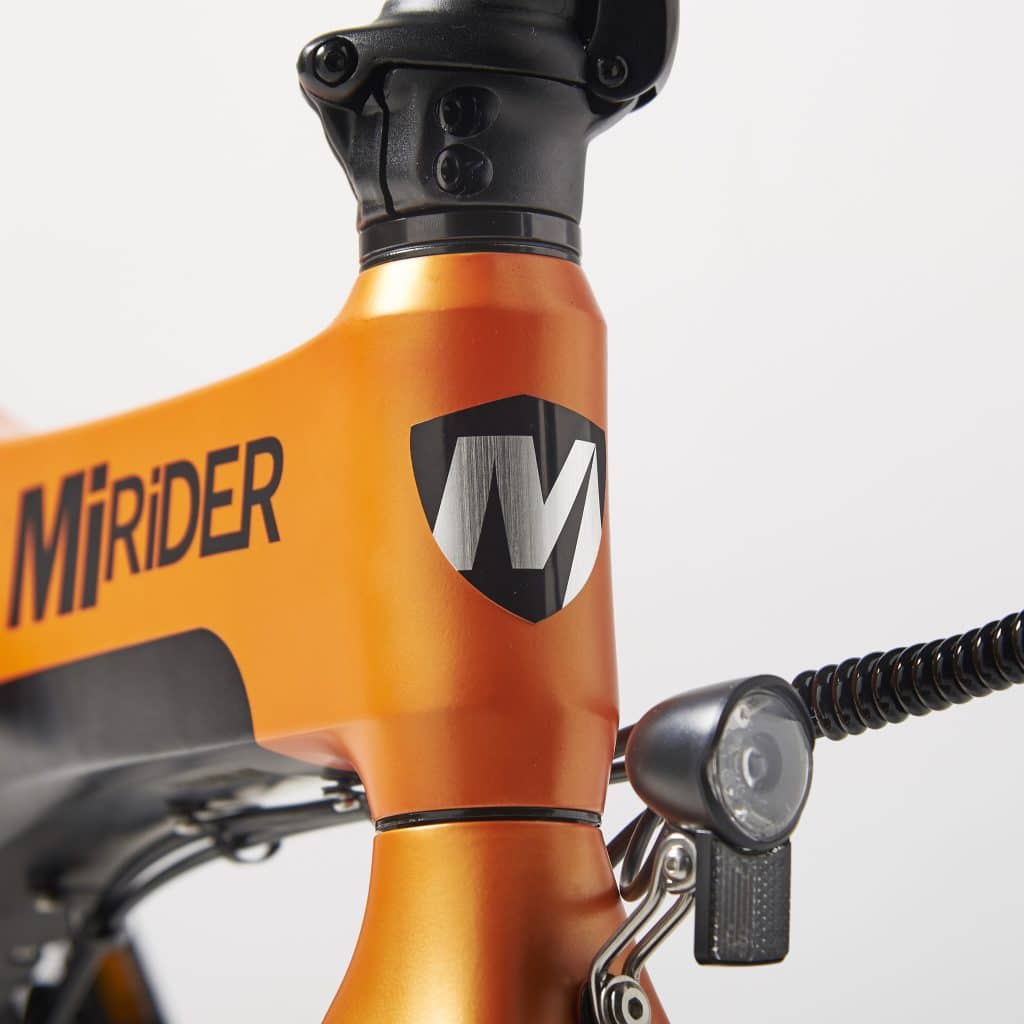

Accessories Included – Front/rear mudguards, Front LED light, rear reflector, folding pedals, kickstand & stabiliser wheel, wheel magnets for secure folding, adjustable folding strap & battery charger.

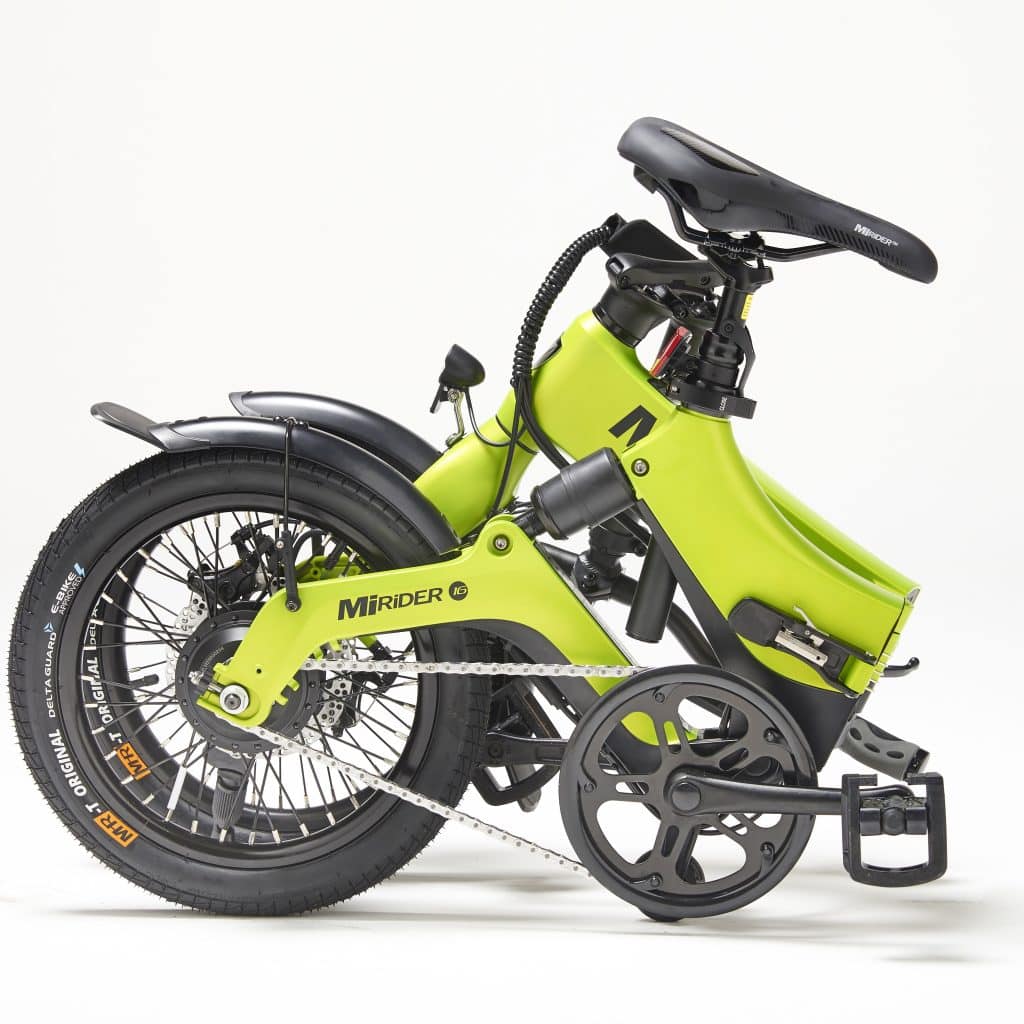

Folded & Unfolded Dimensions – 690 × 460 × 780 mm / 1350 × 575 × 1340 mm

Brakes – Front and rear Clarks CMD-24 disk brakes

Comfort – Rear spring damper

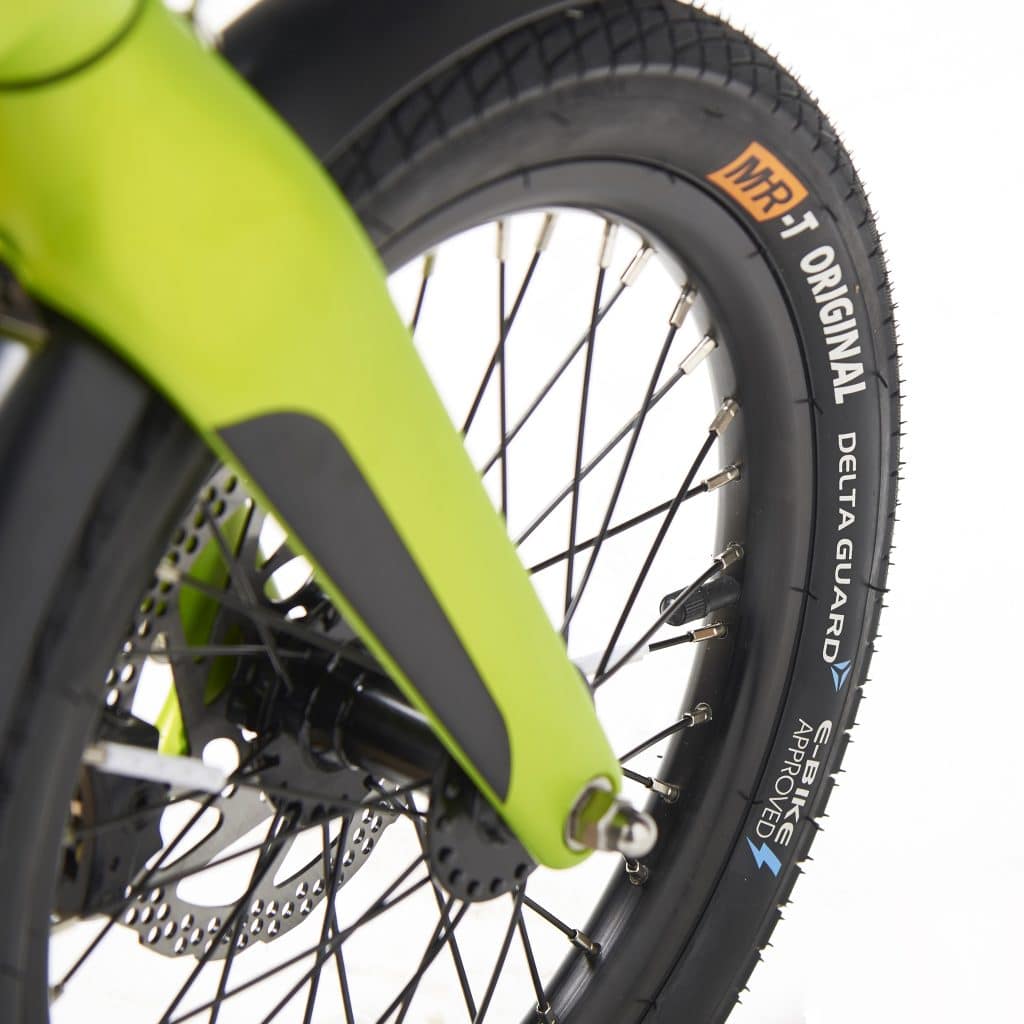

Tyres – Ralson road tyre with delta guard protection 16x 2.125

Wheels – 16” wheels with aero rims and a MiRiDER designed 1 piece front hub

Chain – KMC e-bike specific

Total Approximate Weight Fully Equipped – 17.3 kg

Maximum Recommended Rider Weight – 120 kg

Rider Height – 152 cm – 195 cm / 5’0 – 6’4

Road Legal – Worldwide

Folded Dimensions – Height 690mm, Length 780mm and Width 460mm

Full Dimension – Height 1350mm, Length 1340mm and Width 575mm

Key Features:

• Compact folding in seconds
• Weld free magnesium alloy frame
• Weight (including battery) 17.3 kg
• Large 7 ah Samsung battery
• Up to 45 mile range* (25% more than the previous model)
• 2 year warranty*
• 2-3 hour charge time
• Electric pedal-assist up to 15.5 mph
• 250 watt rear hub motor 25% more Torque
• 5 power settings
• Thumb throttle (unassisted up to 4 mph) plus boost (assisted up to 15.5 mph)
• Rear suspension
• Clarks cable disc brakes

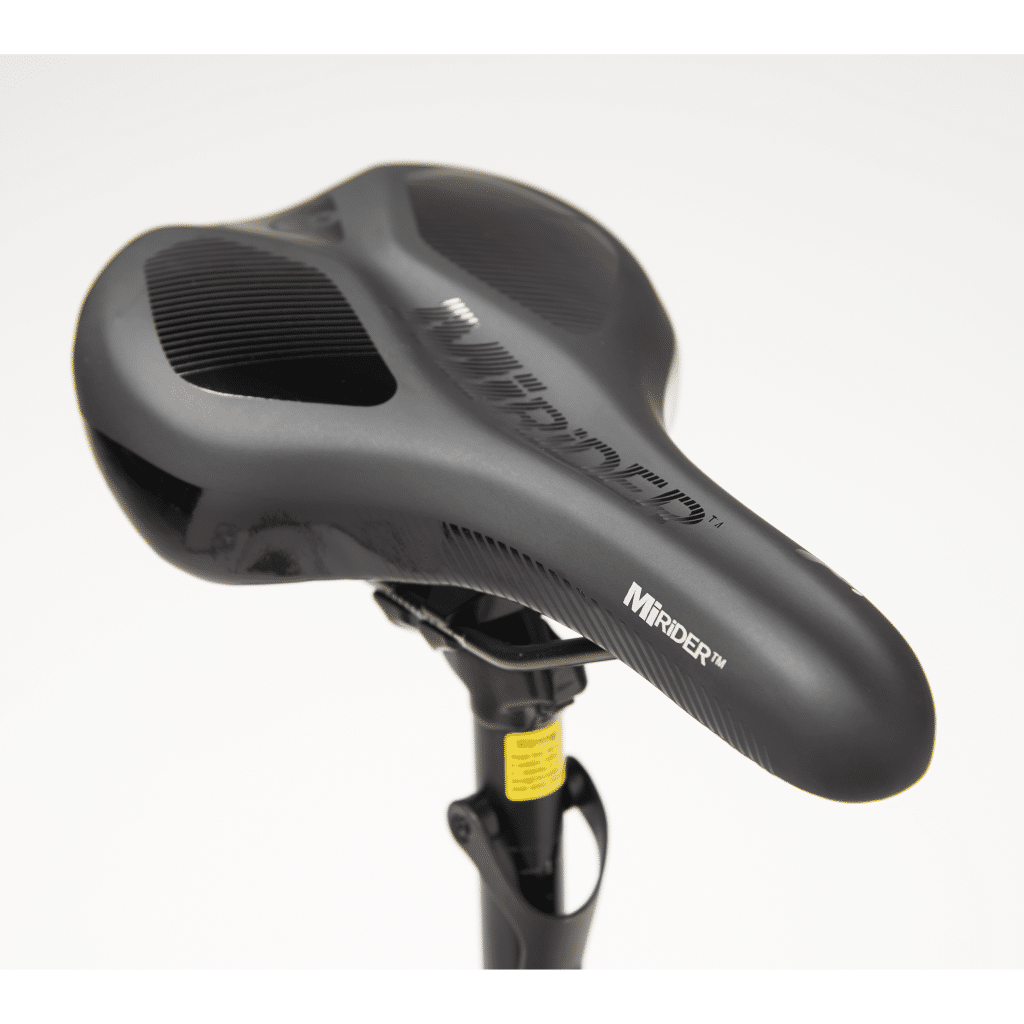

• Telescopic seat & handle bar stems
• IP65 waterproof electric system
• Puncture protection

* Range dependent on rider weight, weather conditions and terrain.

What’s included?

• MiRiDER 16 eBike
• Owners welcome pack
• Quick start guide

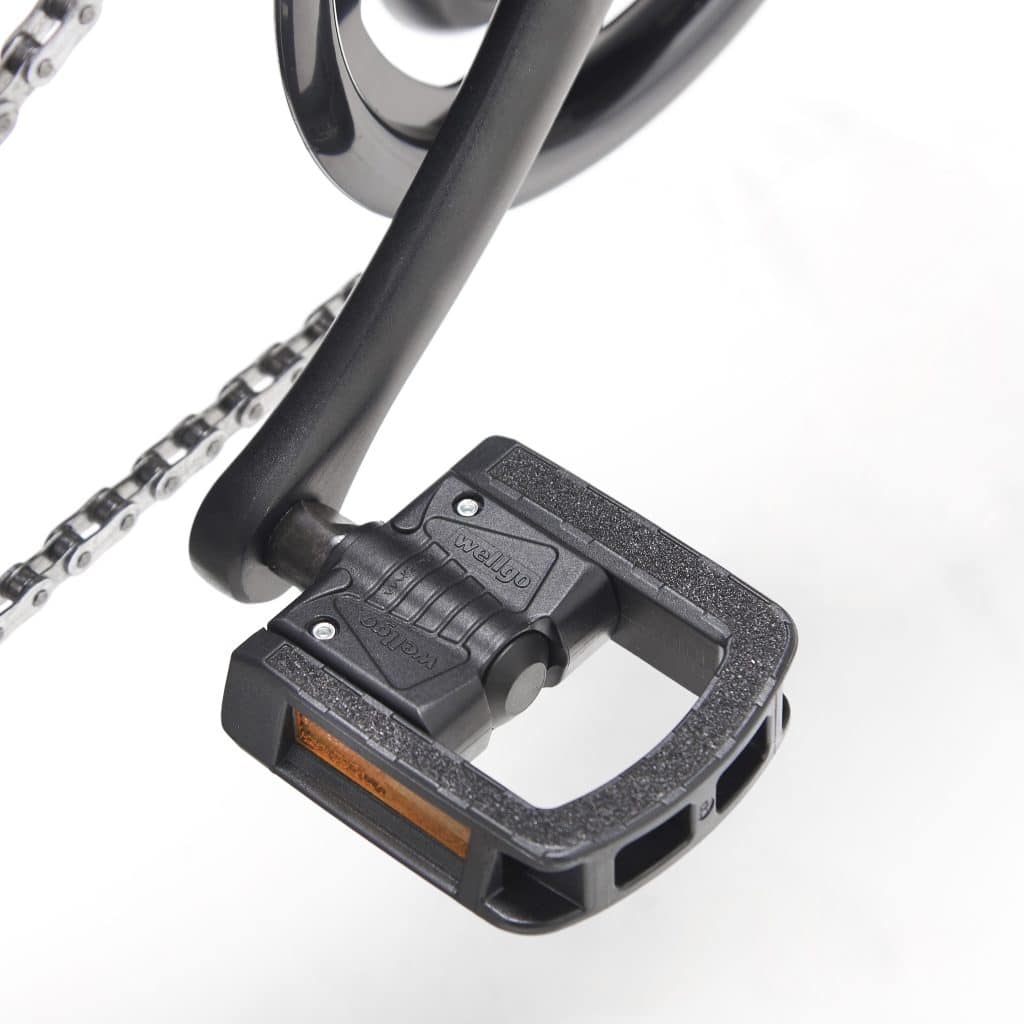

• Pedals
• Battery
• 2 Keys
• Charger
• Mudguards

WARRANTY

Bike Warranty

MiRiDER ebikes come with a 2 year warranty* covering the frame, motor and battery. The 2 year warranty* also covers electronic components such as electronic cabling, LCD display, throttle and electronic brake cut off’s. There is a 1 year warranty on the charger, lights and all non-wearing mechanical parts.

*To access the full 2 year warranty as above you must register your bike below within 30 days of delivery. If the bike is not registered the warranty will be limited to 1 year.

Accessory Warranty

All accessories are supplied with a 12 month warranty against product defect
