Kojack – Single Axle caravan Jack/Levelling System

Description

A 3 stage hydraulic caravan jack for caravans without jacking points.

Custom designed brackets allow you to easily and effortlessly jack & level your caravan without the need for drilling your caravan chassis; which can void your warranty. Kojack fits 99% of caravans.

Wherever you park your caravan you can always have the perfect pitch.

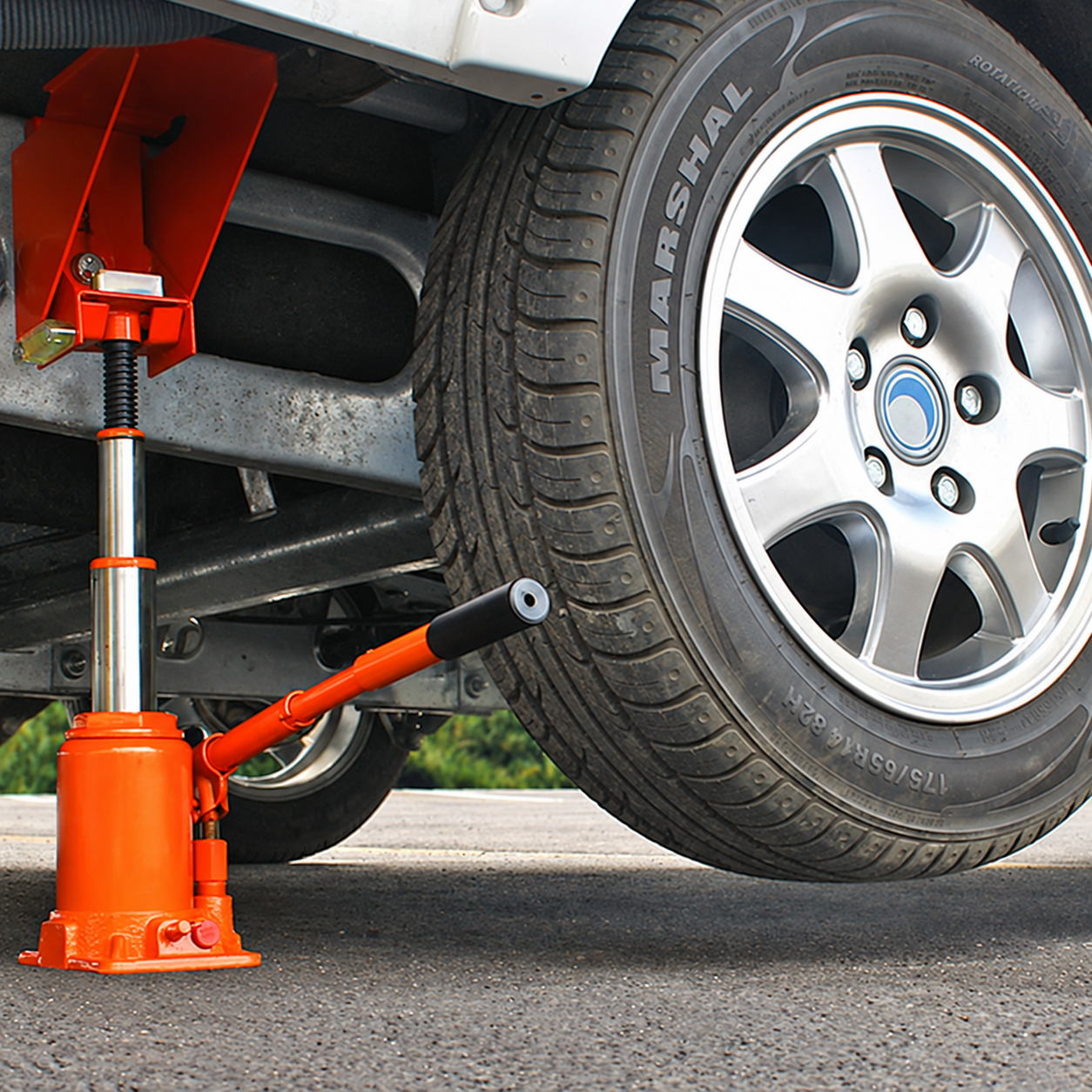

Designed in the Purple Line’s UK innovation centre the 3-Tier hydraulic bottle jack, connects into the dedicated safe anchor points, which are attached to your chassis. The brackets bolt in to pre-existing holes that are standard on most AL-KO & BPW chassis.

Kojack has full TUV CE accreditation and a safe working load (SWL) of 2000kg.

The kojack set includes a 3-tier hydraulic bottle jack, 2 x chassis brackets with integral spirit levels and all necessary fittings an fixings.

Kojack Hydraulic caravan jack & levelling system…. Quick wheel changes and the perfect pitch.

Safe working load (kg): 2000
Colour: High visibility orange
Compressed dimensions (mm): 170H X 140W X 130D
Extended dimensions (mm): 390H X 140W X 130D
Weight (kg): Jack – 4.7 Package – 6.1

Bracket type: L-Bracket
Number of brackets included: 2
Bracket spirit levels: Included
L-Bracket dimensions (mm): 155H X 950W X 60D
L-Bracket weight (kg): 0.7
Hole spacing from centre (mm): 55
