Kojack – Twin Axle caravan Jack/Levelling System

Description

Custom designed brackets allow you to easily and effortlessly jack & level your caravan without the need for drilling your twin axle caravan chassis; which can void your warranty. Kojack fits 99% of  twin axle caravans.

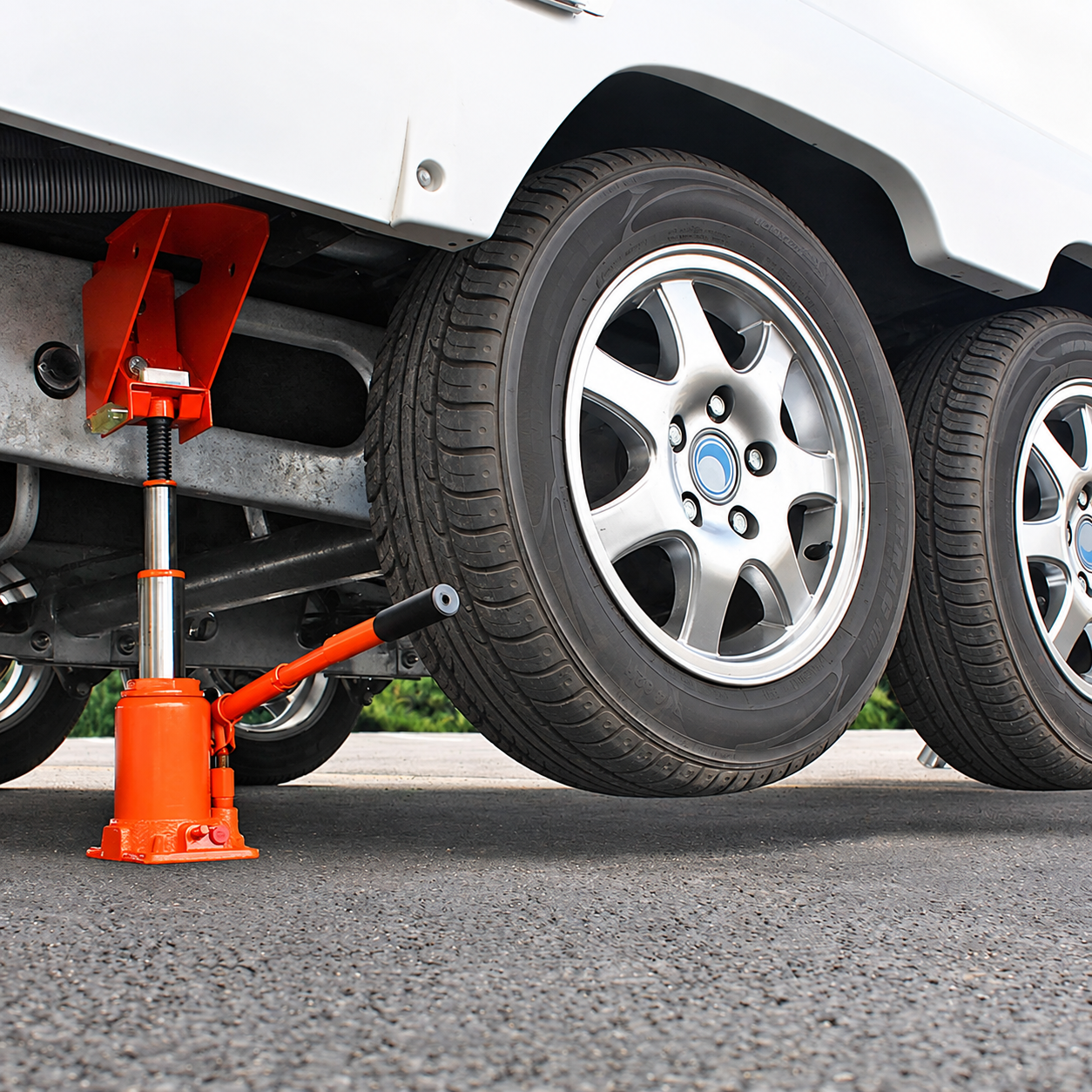

Designed in the Purple Line’s UK innovation centre the 3-Tier hydraulic bottle jack, connects into the dedicated safe anchor points, which are attached to your chassis. The brackets bolt in to pre-existing holes that are standard on most AL-KO & BPW chassis.

Kojack has full TUV CE accreditation and a safe working load (SWL) of 2000kg.

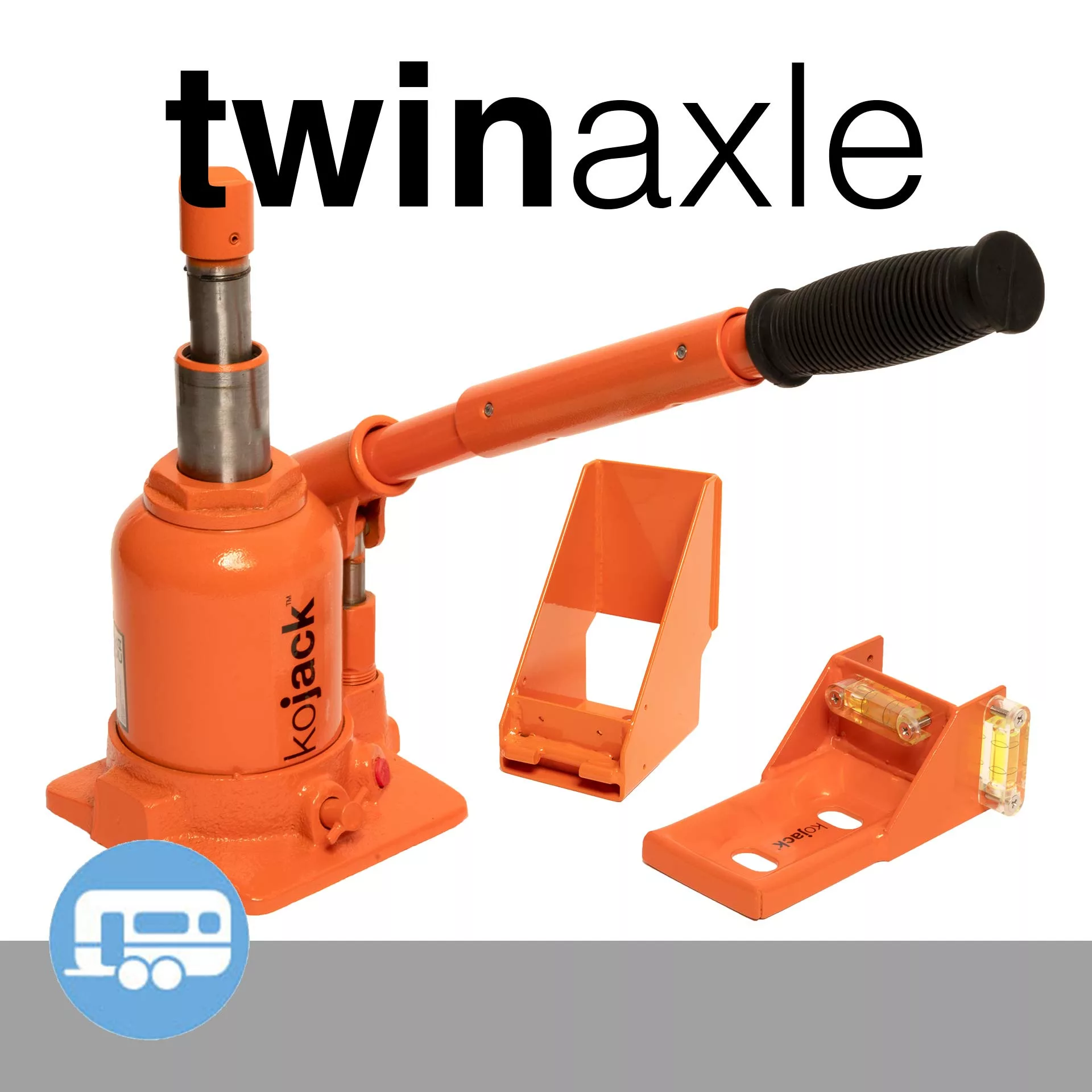

The kojack set includes a 3-tier hydraulic bottle jack, 2 x chassis brackets with integral spirit levels and all necessary fittings an fixings.

For more information watch our videos

Kojack twin axle hydraulic caravan jack & levelling system…. Quick wheel changes and the perfect pitch.

Please note that if you have an all wheel drive motor mover fitted to your caravan the bracket for the Kojack will have no where to attach to the chassis.

Safe working load (kg): 2000
Colour: High visibility orange
Compressed dimensions (mm): 170H X 140W X 130D
Extended dimensions (mm): 390H X 140W X 130D
Weight (kg): Jack – 4.7 Package – 8.9

Bracket type : L-Bracket V-Bracket
Number of brackets included: 2 x L, 2 x V
Bracket spirit levels: Included
L-Bracket dimensions (mm): 155H X 95W X 60D
L-Bracket weight (kg): 0.7
V-Bracket dimensions (mm): 150H X 110W X 180D
V-Bracket weight (kg): 1.4
Hole spacing from centre (mm): 55
